There are plenty of reasons to use GDB, as it is a general purpose debugger, but you will find it particularly useful in two circumstances in this course:

1. You have a binary and you’d like to determine the state of the machine (registers, stack, instructions, etc.) during its run.
2. You are writing C code, figured out that you have a bug, and you need to examine variables and state. First, we’ll describe how to get going in GDB, and then we’ll cover these use cases.

Running a Program in GDB

Throughout this example, we will discuss an example program called program which is compiled from program.c. When compiling for use with GDB, make sure to give clang the -g flag which adds debugging symbols that GDB can use.

The command cs24-gdb program will open an instance of gdb with the program loaded. It will not automatically run and should use the cont to begin the program if you don’t want any breakpoints. If the program takes any arguments, you can include a text file as an additional argument when typing cs24-gdb program arg.txt.

Sometimes, we may want to run our code with input from a file, or input from another program that might, for instance, generate an exploit. This is particularly useful during the adventure projects, because remembering long passwords is hard, and typing non-printable like 0x01 is really hard.

However, just running a program in GDB is often not what you want. Just like in IntelliJ, GDB has the concept of a “breakpoint” where you can ask GDB to stop on reaching a specific line. In GDB, there are three ways to specify breakpoints (using the b command):

b (setting a breakpoint)

• b *0x4004af (by address)
• b main (by function)
• b program.c:10 (by line)

Inspecting Program State

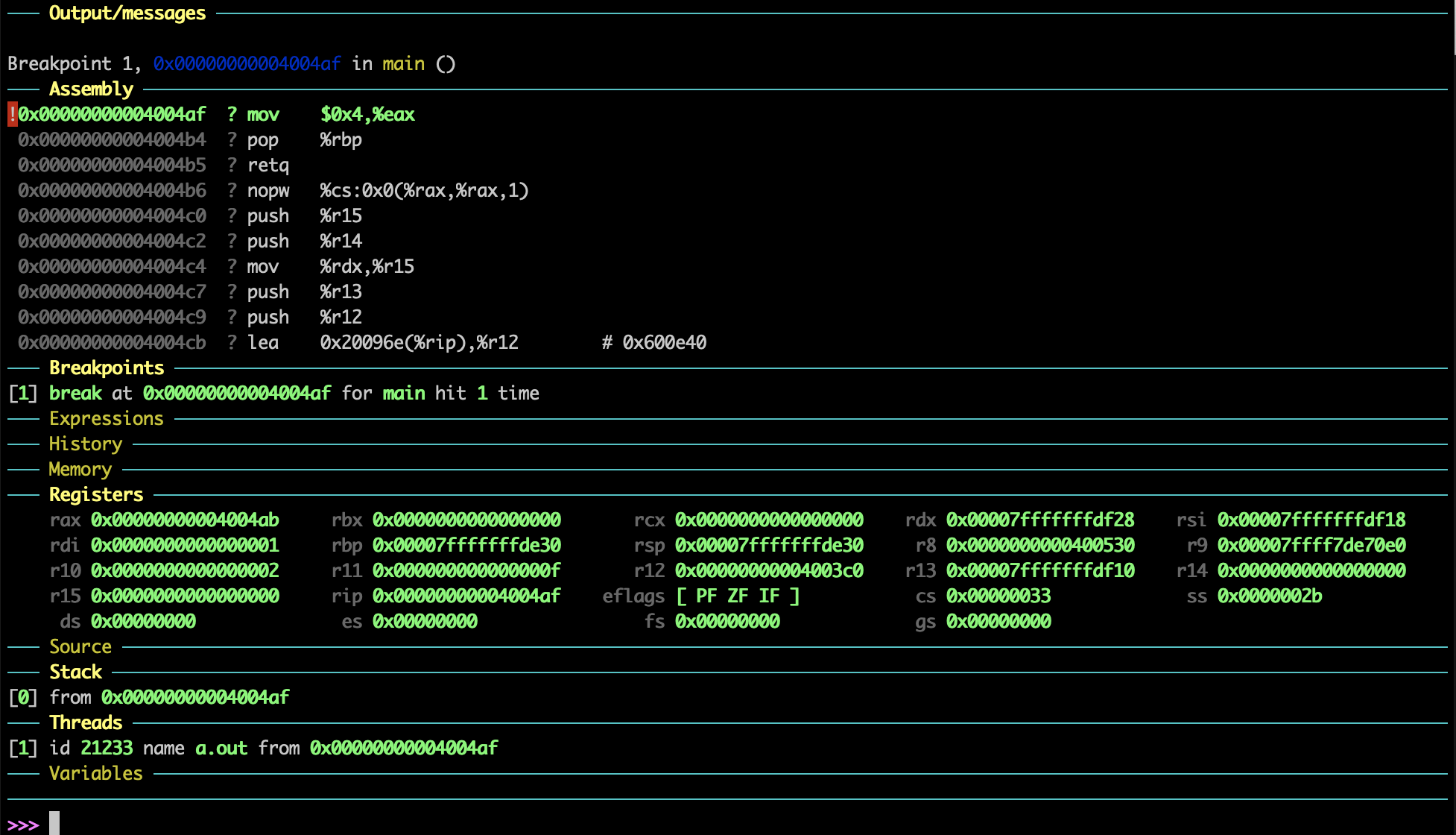

After opening the program in GDB, if you’ve installed the CS 24 infrastructure correctly, you should be dumped into a screen that looks something like this:

If your view does not look like this, run the cs24-setup command again.

Notably, this view shows you the assembly, registers, and call stack. Conspicuously missing is the stack. To show the memory around sp, run the following command:

dashboard memory watch $sp-64 128

Then, GDB will show bytes in the “Memory” tab which will update throughout running the program. You will have to run this command every time you start GDB if you want to see the stack.

Here are some more useful commands:

• si (stepping one instruction)

  si will step one instruction forward in the program.

• s (stepping one line)

  s will step one line in the program. It will enter any functions being called.

• cont (continue executing)

  cont will continue execution after it was stopped at a breakpoint.

• finish (finishing a function)

  finish will step to the end of the current function call. It will return to the previous call-site.

• p (printing a variable or expression)

  • p y (prints the value of the variable y)
  • p y + 100 (prints the value of the expression y + 100)
  • p $sp (prints the contents of the sp register)
  • p/x *(char *)$sp (print the value of the contents of sp as a char * in hex)
